BACKGROUND

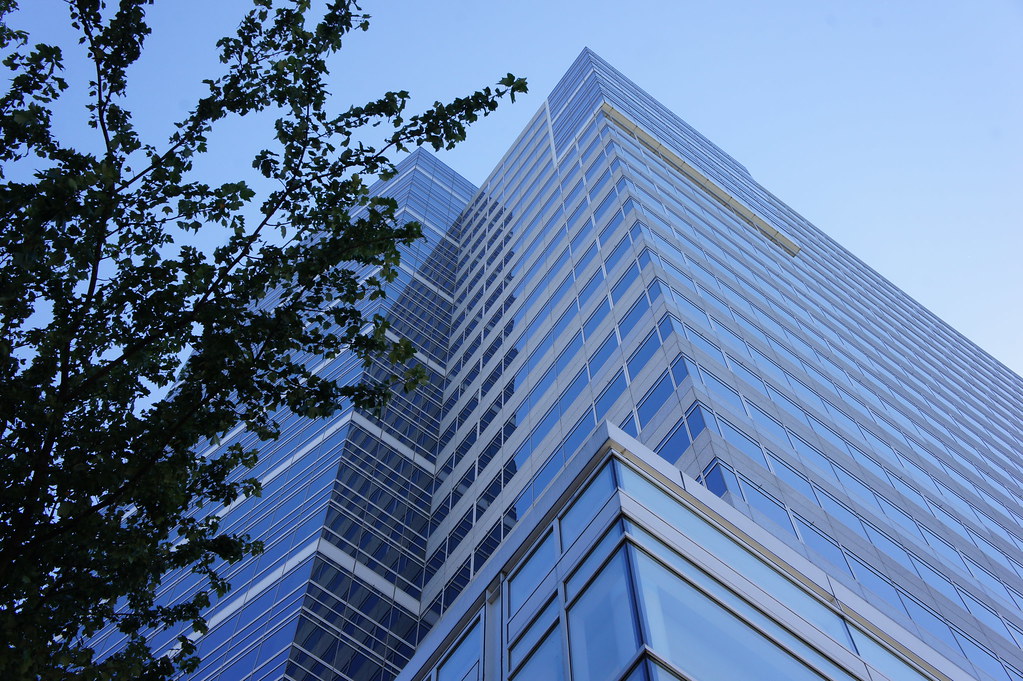

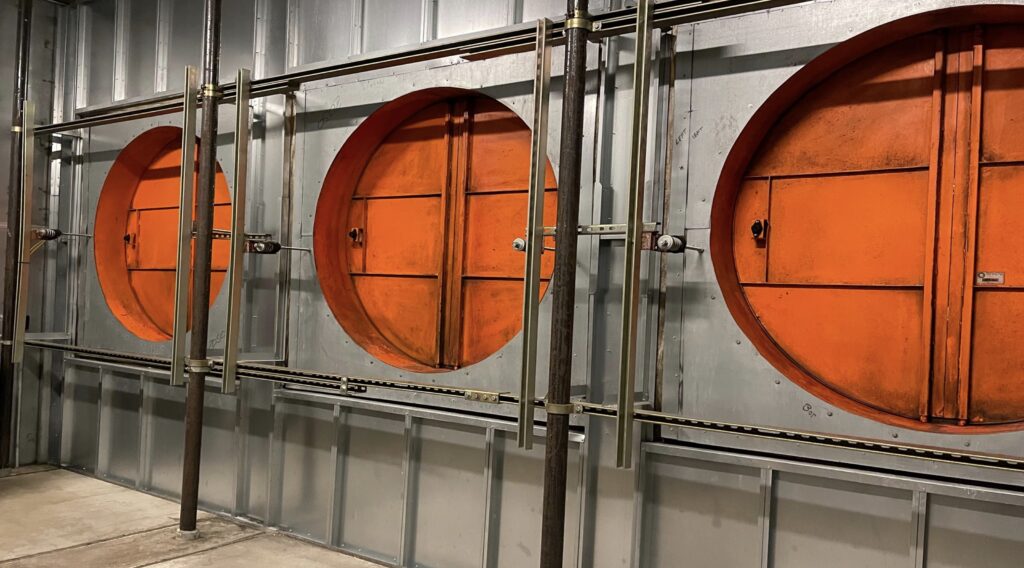

Fox Tower Portland, a prominent mixed-use building, faced a critical HVAC challenge. Three large Vane Axial fans within the building’s built-up air handling,  were experiencing frequent breakdowns, leading to costly maintenance, disruptive repairs, and significant occupant discomfort. The existing “built-up” system severely limited the space available for replacement units, demanding a solution that was both compact and easily installed.

CHALLENGE

• Frequent Breakdowns: The existing Vane Axial fans were unreliable, causing frequent disruptions to building operations.
• High Maintenance Costs: Constant repairs and replacements resulted in exorbitant maintenance expenses.
• Occupant Discomfort: Malfunctioning fans led to inconsistent temperature control and poor indoor air quality, impacting occupant comfort and productivity.
• Space Constraints: The limited space within the built-up air handler, presented a significant obstacle for the installation of replacement fans.

SOLUTION

• ECM Fans: A popular choice known for energy efficiency, ECM fans were initially considered. However, a detailed analysis revealed several drawbacks:
  • Large Quantity Required: Achieving the necessary airflow (CFM) for the building would have necessitated a significantly larger number of ECM fans (102) compared to the XⁿFan solution (42).
  • Higher Energy Consumption: Despite their energy-efficient motors, the sheer number of ECM fans required would have resulted in higher overall energy consumption compared to the XNFan system.

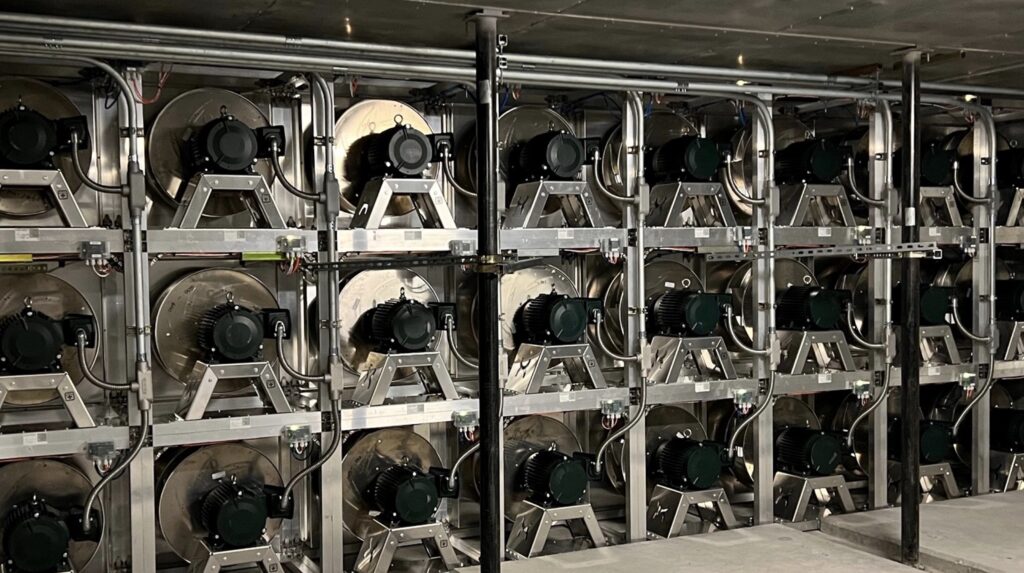

• XNFans: XNRGY’s innovative XNFan technology presented a compelling alternative:
  • High Performance: XNFans are designed to deliver high airflow with exceptional efficiency.

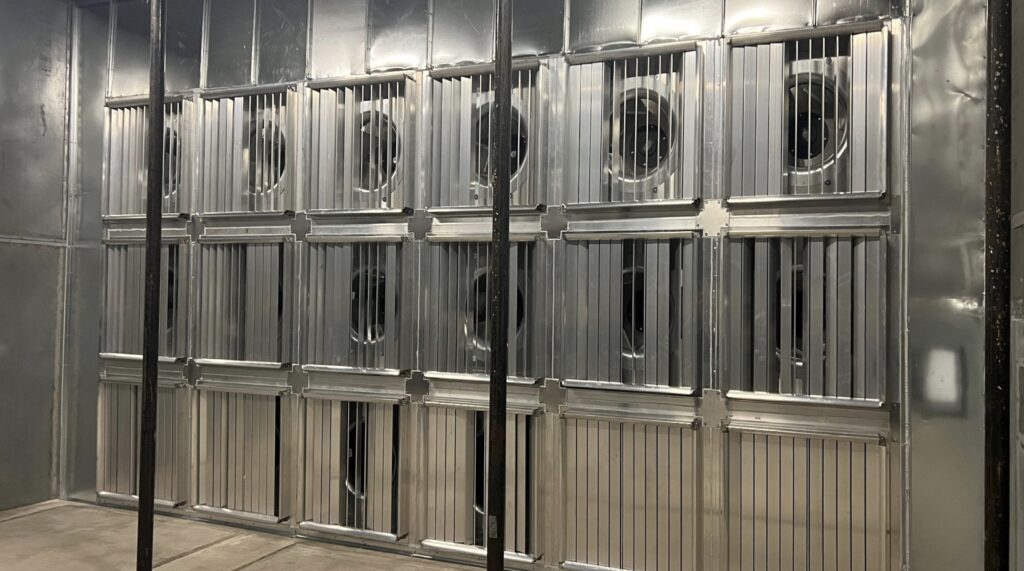

  • Compact Design: Their compact and modular design made them ideal for space-constrained environments like the Fox Tower built-up air handler.
  • Ease of Installation: The modularity of XNFans facilitated easy assembly and installation, minimizing disruption to building operations.

DECISION
After careful evaluation of both options, the project team selected XNFans as the preferred solution. Key factors influencing this decision included:

• Improved Energy Efficiency: On the strength of requiring fewer units, XNFans were estimated to deliver superior energy efficiency compared to the ECM fan solution.
• Enhanced Reliability: XNFan technology is designed for durability and reduced maintenance, minimizing the risk of future breakdowns.
• Cost-Effectiveness: The combination of lower energy consumption, reduced maintenance, and a smaller overall system resulted in a more cost-effective solution compared to the ECM fan option.

CONCULSION
The Fox Tower Portland case study demonstrates that while ECM fans are often touted as the most energy-efficient option, they may not always be the best solution for every application. In this case, a thorough analysis revealed that XNFans offered superior performance, reduced installation challenges, and improved long-term cost-effectiveness. This project serves as a valuable example of how careful consideration of all factors, beyond just energy consumption, is crucial for selecting the most optimal HVAC solution.

Disclaimer:  This case study is based on a specific project scenario. Actual project details and outcomes may vary. It is essential to conduct a thorough site assessment and perform detailed engineering calculations to determine the most suitable solution for your specific project requirements.
